HWAT-R Self-Regulating Heating Cable

Raychem Part Number: 266435-000

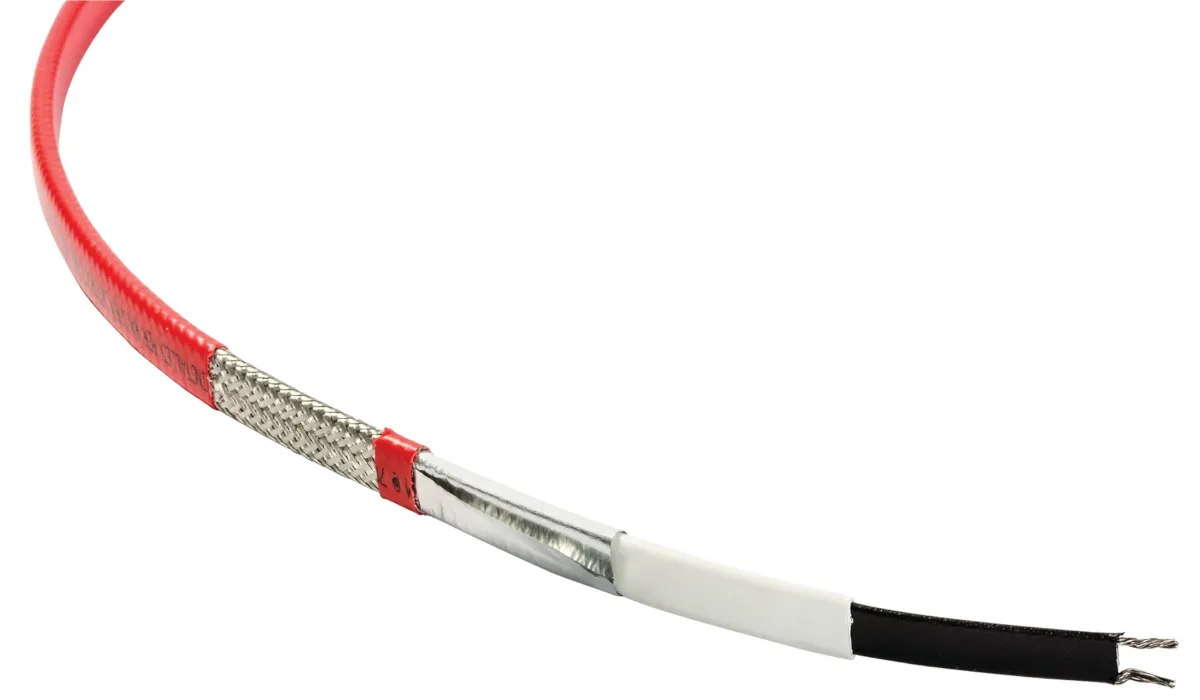

HWAT-R 12W/m self-regulating cable for temperature maintenance prepared for installation.

Raychem HWAT-R heat tracing cables are designed to maintain hot water pipes at set temperatures, keeping the temperature constant on the entire pipe length.

  • There is no risk of overheating
  • It has a long life cycle
  • It is easy-to-install due to their cut-to-length feature

In addition, HWAT-R includes the possibility of thermal legionella prevention up to the draw-off points when used in conjunction with HWAT-ECO V5 controllers.

Product Specifications

Power output 12 W/m at 70°C
Max exposure temperature 80°C
Nominal voltage 230 VAC
Max circuit length 100m (20A)
Min bending radius 10mm
Approvals BS / ÖVE / VDE / SEV / CSTB / SVGW / DVGW / CE / VDE
