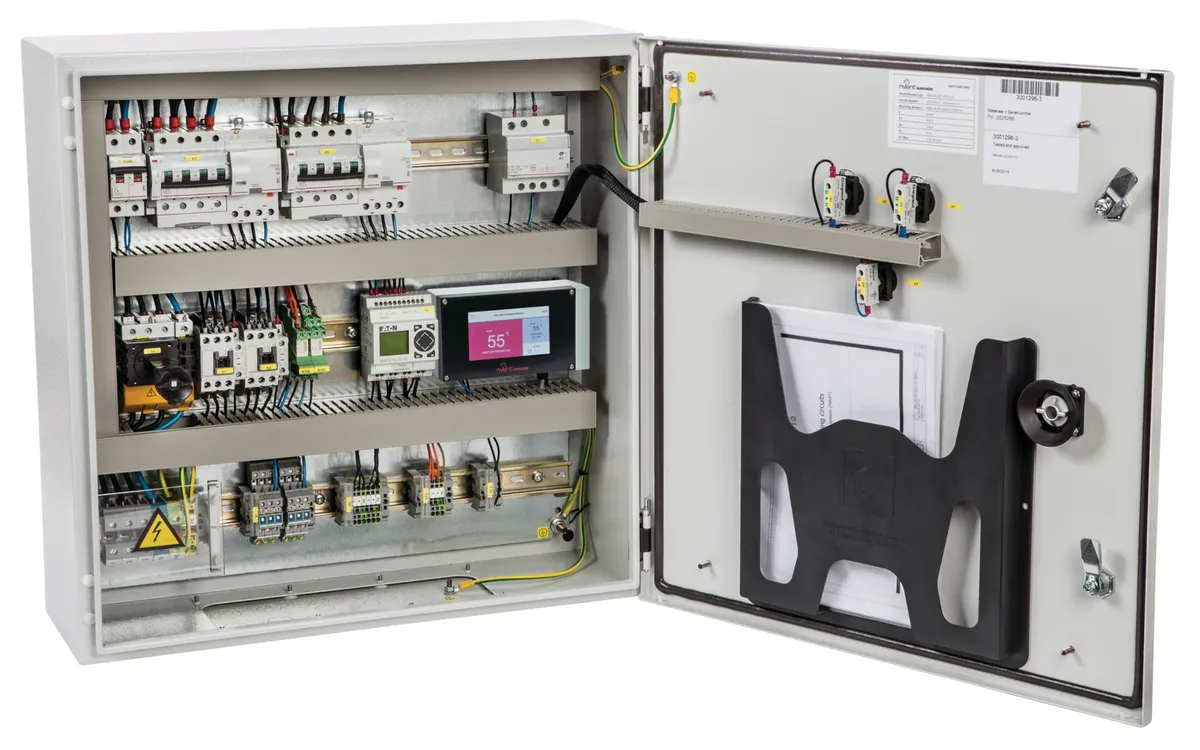

SBS-01-HM-ECO-10 Control Panel
Raychem Part Number: 390056-000
The SBS-01-HM-ECO-10 control panel for hot water temperature maintenance systems provides a totally integrated solution for the control of Raychem self-regulating heating cables for single pipe hot water temperature maintenance applications.
The control panel comprises the energy efficient HWAT-ECO control system with integrated standard, economy, and “Tap time” set-back timer functions.
The control panel also includes monitoring of the boiler output temperature and low temperature alarm in the event of low boiler output temperature.
A BMS connection is also provided to allow controller override switching between maintain mode, setback mode or legionella prevention mode (when using HWAT-R heating cable only).
The SBS-01-HM-ECO-10 panel switches a single maximum circuit of HWAT-M or HWAT-R self regulating heater cable. The panel also includes electrical circuit protection devices (C-type circuit breakers and RCD protection) for safety and peace of mind. The panels need only be connected to the 230Vac/400Vac (3 phase) supply.
Benefits
- Integrated electrical safety, control, and heater connection within a single unit from the heat tracing manufacturer
- Alarm function for system monitoring
- Boiler monitoring sensor for for low and high temperature alarm. Pipe sensor for monitoring pipe temperature
Product Specifications
| Control | HWAT-ECO Smart control device, pre-installed and electrically connected |
|---|---|
| Supply voltage | 230Vac 50/60Hz |
| Set temp | Customer specific at first set-up. (quick and easy menu driven set-up) |
| Sensor | Boiler output temperature sensor (Line sensor.) NTC 10 KOhm |
| Panel approval | CE (Approved to IEC61439) |
| Main switch | 32A |
| RCD | 30mA |
| Line Circuit breakers | 20A (Type C) per heater circuit |
| Selector Switch | Auto / Manual heater circuit mode |
| Alarm function | 1 general potential free alarm contact; alarm light indicator on panel front |
