Raychem Spare Sensors

Replacement ambient temperature sensor for the GM-TA controller.

Product Specifications

Type	Sensor type 202AT ±1% NTC 2KOhm@25°C
IP Rating	IP65
Enclosure Dimensions	Width: 50mm; Depth: 26mm; Length: 52mm
Cable Diameter	4mm
Exposure temperature	-30°C to +40°C
Accuracy	±1K

Spare moisture sensor for the EMDR-10

Product Specifications

Type	PTC
Power Consumption	9W to 18W
Ambient Temperature Range	-30°C to +65°C continuous
Supply Voltage	230 VAC, ±10%, 50Hz
Connection Cable	3 x 1.5mm² 4m, cable can be extended to max 100m at 3x1.5mm²

Replacement temperature sensor for the AT-TS-13 and AT-TS-14 controllers.

Replacement temperature sensor for the Raystat-CONTROL-11-DIN controllers.

Can also be used as an optional sensor for the Raystat V5 with the SM-PT100-1 or the Elexant 450C with the SM-PT100-2.

Ambient temperature sensor for RAYSTAT-M2.

Install under the roof eaves on the north side of the building.

Product Specifications

Detection	Temperature only
Mounting	External wall mounting
Ambient temperature	-50/+70°C
Dimensions	86 x 45 x 35mm

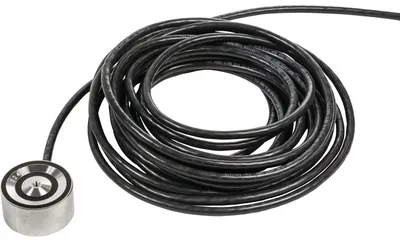

Ground sensor for detection of temperature and moisture with 10 metres of cable.

Install where the snow and ice problems typically occur. The sensor is mounted on a hard foundation, in a concrete base, with the top of the sensor flush with the surface. Where an asphalt surface is used, it should be placed in a concrete recess. The sensor cable must be mounted in accordance with local regulations, and the use of cable conduit is recommended.

Product Specifications

Detection	Moisture and temperature
Mounting	Outdoor area
IP Classification	IP68
Cold lead cable	10 metres, extendable to 200 metres
Ambient temperature	-50/+70°C
Dimensions	H32mm, Ø60mm

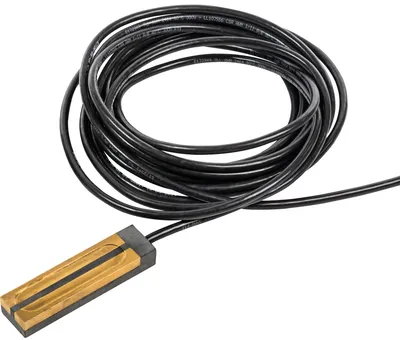

Gutter sensor for detection of moisture with 10 metres of cable.

Install in the gutter or drain pipe on the sunny side of the building. The contact point of the sensor must be placed in the direction of flow of the melting water.

Product Specifications

Detection	Moisture only
Mounting	Roof, gutter or drainpipe
IP Classification	IP68
Cold lead cable	10 metres, extendable to 200 metres
Ambient temperature	-50/+70°C
Dimensions	105 x 30 x 13mm

The SENSOR-NTC-10M is a replacement temperature line sensor for the electronic thermostats HWAT-T55, HWAT-ECO V5, Raystat V5 , Elexant 450c and GM-TA

This uses a NTC 2KΩ @ 25°C and is 10 metres in length.

Optional ambient sensor for the VIA-DU-20 and EMDR-10 controllers.

Product Specifications

Type	PTC (Cable not included). Max length: 100m (2 x 1.5mm²)
Ingress Protection	IP54
Ambient Temperature Range	-30°C to +80°C
Terminals	1.5—2.5mm²
Mounting	Wall mounting

Replacement moisture sensor for the VIA-DU-20 controller.

Product Specifications

Sensor Ingress Protection	IP67
Cold Lead	L: 15 Metres; Dia: 5.7mm. Extendable to 50m (5 x 1.5mm²)
Sensor Heating	Approx. 0.3Ohm (green-brown wire)
Ambient Operating Temp. Range	-30°C to +80°C
Supply Voltage	8V DC (via control device)
