Raychem Support and Mounting Brackets

Support brackets are used to fix equipment such as thermostats or junction boxes on pipes or cable trays. Support brackets require additional pipe straps which have to be ordered separately.

They include a set of M6 and/or M4 fixing screws, nuts, washers and spring lock washers to secure one junction box or thermostat.

JB-SB-08

Raychem Part Number: 084799-000

The JB-SB-08 is a single leg support bracket to attach the junction and connection box JB16-02.

JB-SB-08 metal mounting bracket with fixings for a JB16-02 junction box.

RAYCLIC-SB-02

Raychem Part Number: 852001-000

Support bracket for mounting RayClic connections to a wall.

Plastic support bracket Rayclic-SB-02 to mount Rayclic components.

RAYCLIC-SB-GM-METAL

Raychem Part Number: 1244-013853

Rayclic mounting bracket for fixing a Rayclic accessory to a seamed metal roof.

Documents & Guides

Metal support bracket Rayclic-SB-GM-METAL.

SB-100

Raychem Part Number: 192932-000

The SB-100 can be used to attach any of the following controllers vertically to a pipe:

  • AT-TS-13
  • AT-TS-14
  • RAYSTAT V5

Product Specifications

Plate size (mm) X x Y 160 x 230
Distance pipe-plate (mm) 100
Num. of pipe straps required 2
Max. pipe temperature (°C) 230
Weight (kg) 0.7

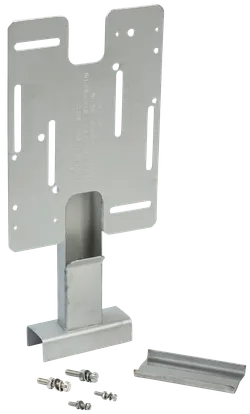

SB-100 metal mounting bracket with fixings for a controller.

SB-101

Raychem Part Number: 990944-000

The SB-101 can be used to attach any of the following controllers horizontally to a pipe:

  • AT-TS-13
  • AT-TS-14
  • RAYSTAT V5

Product Specifications

Plate size (mm) X x Y 160 x 160
Distance pipe-plate (mm) 160
Num. of pipe straps required 2
Max. pipe temperature (°C) 230
Weight (kg) 0.59
SB-101 metal mounting bracket with fixings for a controller.

SB-110

Raychem Part Number: 707366-000

The SB-110 can be used to attach any of the following vertically to a pipe:

  • AT-TS-13
  • AT-TS-14
  • JB16-02

Product Specifications

Plate size (mm) X x Y 160 x 130
Distance pipe-plate (mm) 100
Num. of pipe straps required 1
Max. pipe temperature (°C) 230
Weight (kg) 0.4
SB-110 metal mounting bracket with fixings for certain controllers or a junction box.

SB-111

Raychem Part Number: 579796-000

The SB-111 can be used to attach any of the following horizontally to a pipe:

  • AT-TS-13
  • AT-TS-14
  • JB16-02

Product Specifications

Plate size (mm) X x Y 130 x 130
Distance pipe-plate (mm) 100
Num. of pipe straps required 2
Max. pipe temperature (°C) 230
Weight (kg) 0.48
SB-111 metal mounting bracket with fixings for certain controllers or a junction box.
