HWAT-M Self-Regulating Heating Cable

Raychem Part Number: 498639-000

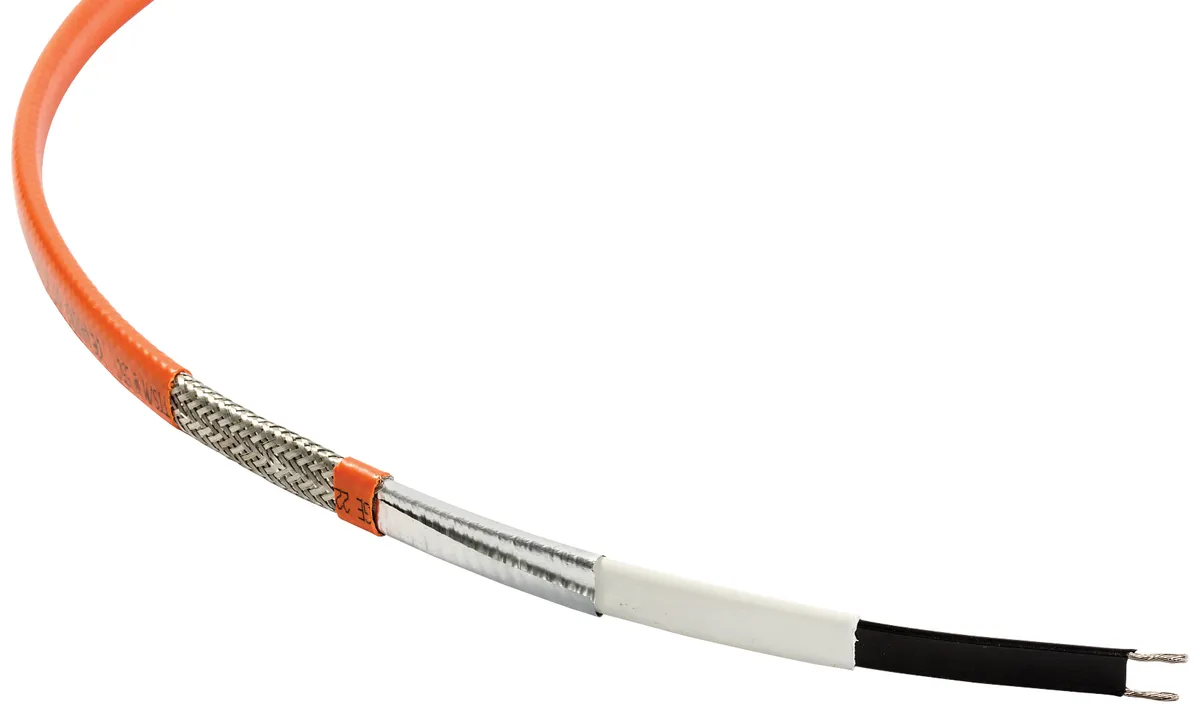

HWAT-M self-regulating temperature maintenance cable stripped ready for installation

Raychem HWAT-M heat tracing cables are designed to maintain hot water pipes at set temperatures, keeping the temperature constant on the entire pipe length.

It is an ideal solution for domestic and commercial installations where thermal pasteurisation is not required. HWAT-M can be installed without a controller, but for increased energy efficiency it is recommended to connect to either a HWAT-ECO or for shorter installations, a HWAT-T55.

If your requirements include the requirement of a thermal pasteurisation cycle, you will need HWAT-R.


  • There is no risk of overheating
  • It has a long life cycle
  • It is easy-to-install due to their cut-to-length feature

Product Specifications

Power output 9 W/m at 55°C
Max exposure temperature 65°C
Nominal voltage 230 VAC
Max circuit length 100m (20A)
Min bending radius 10mm
Approvals BS / ÖVE / VDE / SEV / CSTB / SVGW / DVGW / CE / VDE
