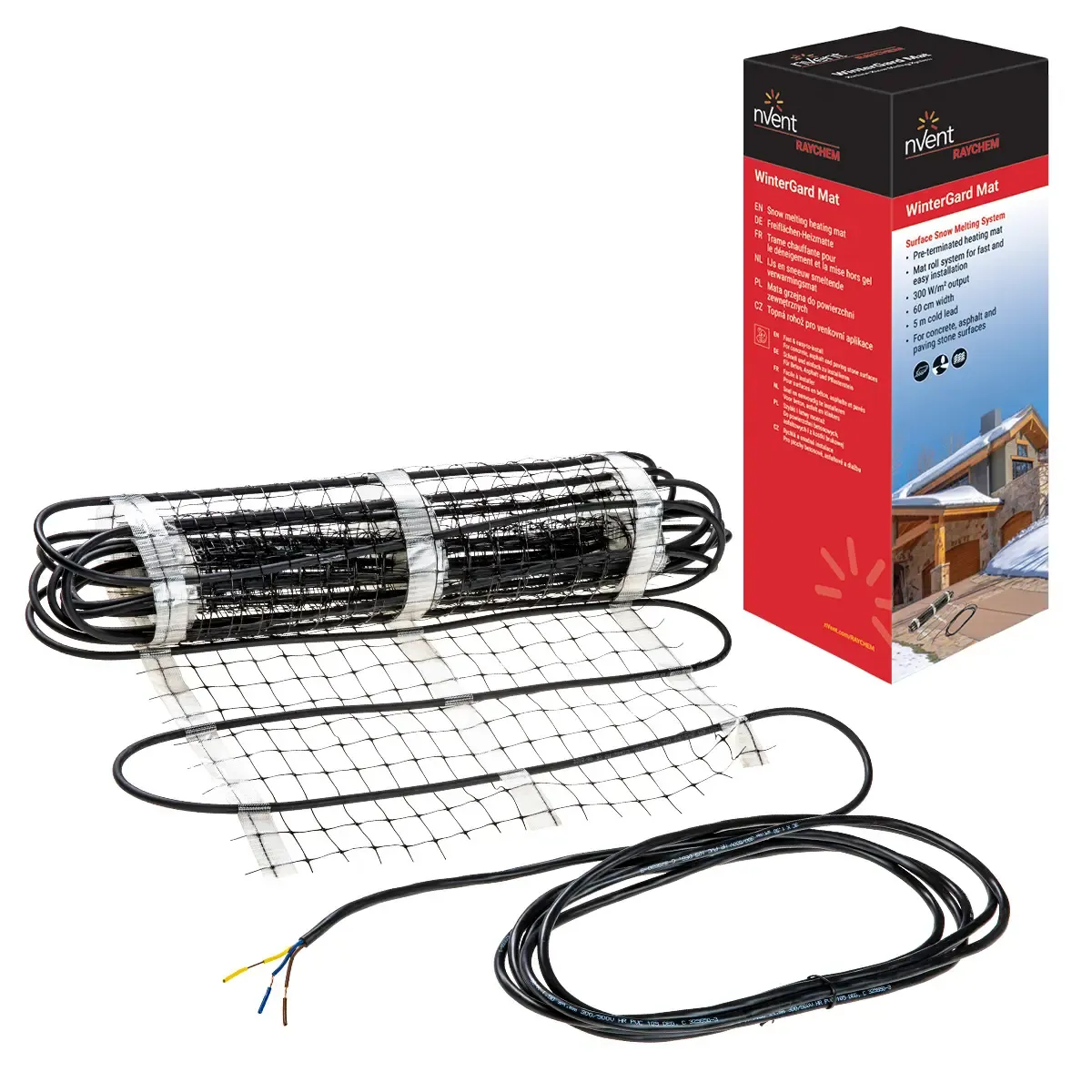

Raychem WINTERGARD-MAT Constant Wattage Cable Mat
The nVent RAYCHEM WINTERGARD-MAT is a constant output heating mat for simple, fast and effective ramp and accessway heating to prevent snow and ice formation. The roll-out mat configuration allows fast installation whilst ensuring the required power output is installed.
The pre-terminated WINTERGARD-MAT comes complete with a 5 m cold lead, removing the need for on-site termination activities. Simply install the heater over the required area and connect the cold lead to the power junction box and control unit.
The WINTERGARD-MAT is particularly suited to track heating of ramps, and driveways, but also emergency escape routes and pedestrian walkways.
Product Specifications
| Nominal Power Output | 300W/m² |
|---|---|
| Nominal Voltage | 230 Vac |
| Maximum Exposure Temperature (powered) | 65°C |
| Circuit Breaker required | Type C RCD: 30mA |
| Certification | CE, UKCA, EAC |
| Product Code | Dimensions | Power Output (Watts) | Raychem Part Number |
|---|---|---|---|
| WINTERGARD-MAT-230V-2M | 2m x 0.6m (1.2m²) | 360 | 1244-022751 |
| WINTERGARD-MAT-230V-3M | 3m x 0.6m (1.8m²) | 540 | 1244-022752 |
| WINTERGARD-MAT-230V-4M | 4m x 0.6m (2.4m²) | 720 | 1244-022753 |
| WINTERGARD-MAT-230V-5M | 5m x 0.6m (3.0m²) | 900 | 1244-022754 |
| WINTERGARD-MAT-230V-7M | 7m x 0.6m (4.2m²) | 1260 | 1244-022755 |
| WINTERGARD-MAT-230V-10M | 10m x 0.6m (6.0m²) | 1800 | 1244-022756 |
| WINTERGARD-MAT-230V-13M | 13m x 0.6m (7.8m²) | 2340 | 1244-022757 |
| WINTERGARD-MAT-230V-16M | 16m x 0.6m (9.6m²) | 2880 | 1244-022758 |
| WINTERGARD-MAT-230V-21M | 21m x 0.6m (12.6m²) | 3780 | 1244-022759 |
