Raychem AT-TS-13 Controller

Raychem Part Number: 728129-000

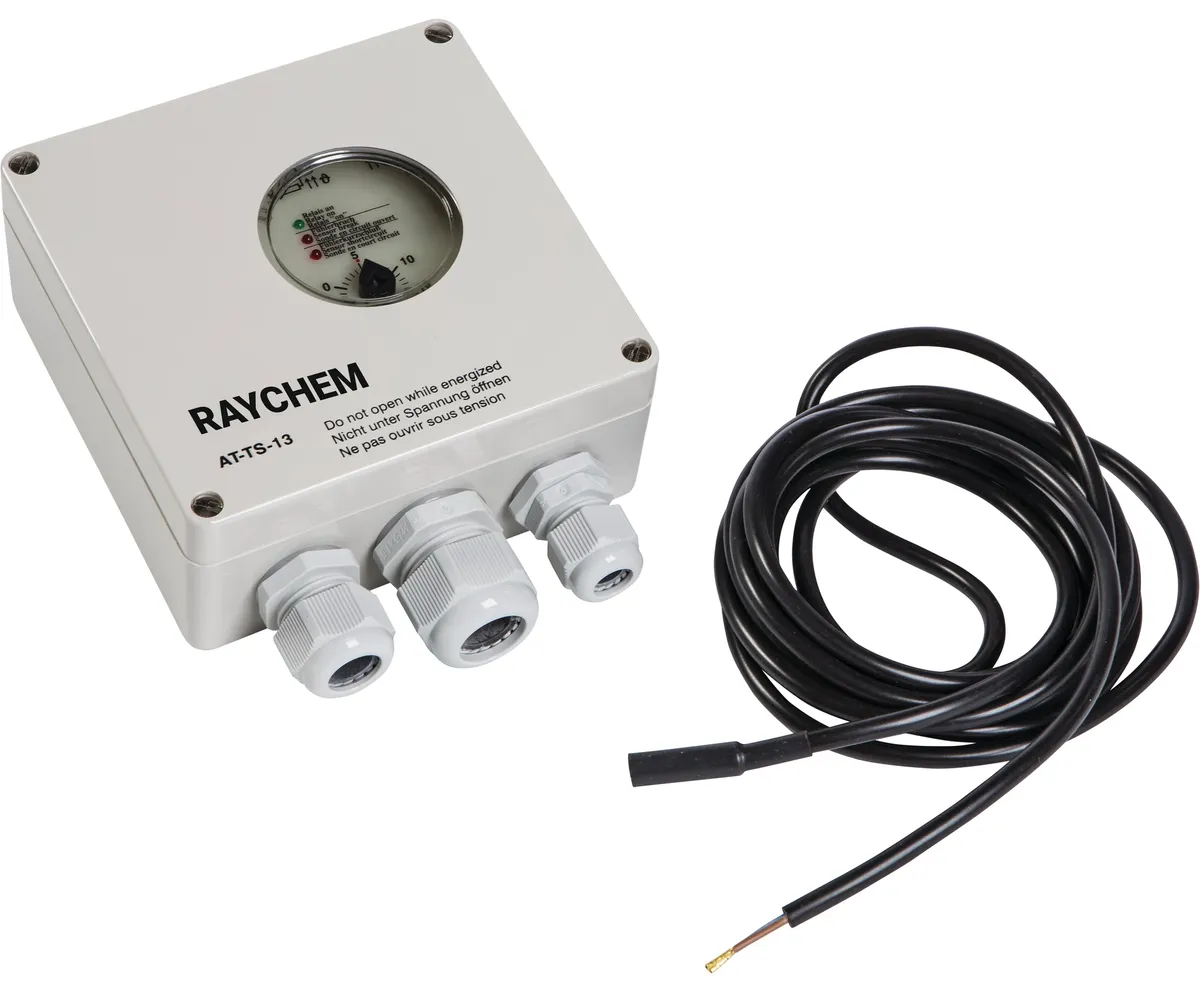

AT-TS-13 with mounting rail, sensor and fixings unpacked ready for installation.

Raychem’s AT-TS-13 thermostat provides ambient-sensing temperature control for frost protection cable.

The temperature set point can be checked through a window in the front face.

LED’s are provide an indication when cables are energised or when the temperature sensor detects a fault (sensor break or sensor short-circuit).

If you require connection to a BMS, you will require a RAYSTAT V5.

Benefits

  • Adjustable temperature range from -5°C to +15°C
  • Line-sensing control thermostat or ambient thermostat

Product Specifications

Supply voltage 230VAC + 10%, 50/60Hz
Maximum switching current 16A, 250VAC
Maximum conductor size 2.5mm
Switching differential 0.6K to 1K
Switching accuracy ±1K at 5°C (calibration point)
Switch type SPST (normally open)
Adjustable temperature range -5°C to +15°C
Exposure temperature -20°C to +50°C
Ingress protection IP65
Entries 1 x M20 for supply cable; 1 x M25 for heating element; 1 x M16 for the sensor
Material ABS
