Fixing Accessories
Attachment Tapes
Attachment tapes are used to initially hold the trace heating cable to the pipe being traced. In the case of ATE-180 the tape is used to help distribute the heat around plastic pipes.

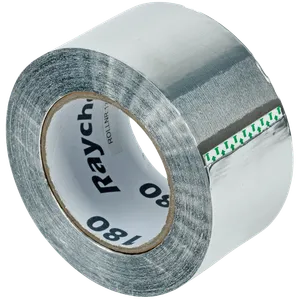

ATE-180
Raychem Part Number: 941735-000
Aluminium adhesive tape for attaching heating cables and thermostat sensors to plastic pipes and tanks.
Minimum installation temperature: 0°C.
50m per roll, 63.5mm width
GS-54
Raychem Part Number: C77221-000
Glass cloth adhesive tape for attaching heating cable to stainless steel pipes.
For stainless steel pipes or for any installation below 4.4°C.
16m per roll, 12mm width.
GT-66
Raychem Part Number: C77220-000
The Raychem GT-66 is a 20m roll of glass cloth adhesive tape for attaching heating cable to metal pipes.
Not for stainless-steel pipes or for installation temperatures below 4.4°C.
20m per roll, 12mm width.
Alternative Pipe Fixing Accessories
KBL-09
Raychem Part Number: 941735-000
Temperature and UV resistant cable tie for attaching trace heating cable to a pipe.
One pack of 100 ties will cover approximately 30 metres of cable.
Length: 200mm
KBL-10
Raychem Part Number: 102823-000
Temperature and UV resistant cable tie for attaching trace heating cable to a pipe.
One pack of 100 ties will cover approximately 30 metres of cable.
Length: 370mm
Pipe Straps (Metal)
Metal straps for pipe mounting of integrated power connections, above the insulation tees and end seals as well as support brackets and the tubular insulation entry.
Banding: stainless steel
| Pipe Outer Diameter Range | Product Code | Raychem Part Number |
|---|---|---|
| 20-47mm (0.5" - 1.25") | PSE-047 | 700333-000 |
| 40-90mm (1.25" - 3") | PSE-090 | 976935-000 |
| 60-288mm (2" - 10") | PSE-280 | 664775-000 |
| 60-540mm (2" - 20") | PSE-540 | 364489-000 |
Snow & Ice Melting Fixing Methods
EM-Spacer
The Raychem EM-Spacer range provides a fixing and spacing solution for all ramp heating and surface snow melting cables including:
- Mineral-Insulated (MI) snow melting kits
- Polymeric constant wattage (EM4-CW) snow melting kits
- ViaGard EM2-XR Self-regulating snow melting cables and configured units.
- ViaGard EM2-R self regulating snow melting cables for light commercial and residential applications.
| Product | Description | Raychem Part Number |
|---|---|---|
| VIA-SPACER-10m | Metal heater cable spacer, 10m length (recommended for EM-MI-PACK) | 198398-000 |
| VIA-SPACER-25m | Metal heater cable spacer, 25m length (recommended for EM-MI-PACK) | 893869-000 |
| EM2-SPACER-PL | Plastic heater cable spacer, 5m length, 25mm clip spacing | 1244-005177 |
GM-Clip-L
Raychem Part Number: 1244-013851
Smart clip for fast and reliable installation of heating cables GM-2X, GM-2XT and FroStop Black in L-shaped gutters.
Documents & Guides
Product Specifications
| Material | Stainless spring steel EN 1.4310 |
|---|---|
| Gutter type | L-shaped gutters; 14-150mm height with max edge/corner width of 15mm |
| Suitable cables | GM-2X, GM-2XT and Frostop Black |
| Box content | 10 clips/box |
| Compatibility | Ensure compatibility with the materials to avoid galvanic corrosion |

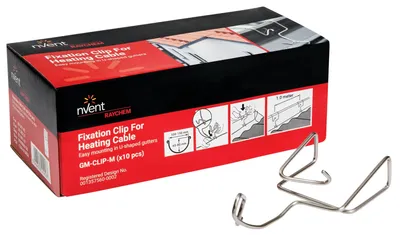

GM-Clip-M
Raychem Part Number: 1244-013850
Smart clip for fast and reliable installation of heating cables GM-2X, GM-2XT and FroStop Black in U-shaped gutters.
Documents & Guides
Product Specifications
| Material | Stainless spring steel EN 1.4310 |
|---|---|
| Gutter type | U-shaped gutterswith width 100-150mm and depth 65-80mm, with max edge/corner width of 17mm |
| Suitable cables | GM-2X, GM-2XT and Frostop Black |
| Box content | 10 clips/box |
| Compatibility | Ensure compatibility with the materials to avoid galvanic corrosion |

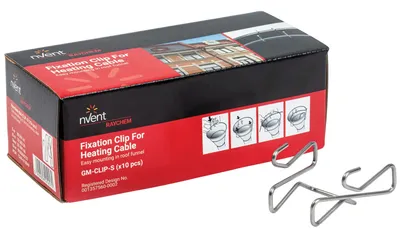

GM-Clip-S
Raychem Part Number: 1244-013849
Smart clip for fast and reliable installation of heating cables GM-2X, GM-2XT and FroStop Black in wide funnels.
Documents & Guides
Product Specifications
| Material | Stainless spring steel EN 1.4310 |
|---|---|
| Gutter type | Wide funnels with max edge/corner width of 10mm |
| Suitable cables | GM-2X, GM-2XT and Frostop Black |
| Box content | 10 clips/box |
| Compatibility | Ensure compatibility with the materials to avoid galvanic corrosion |
GM-Hanger
Raychem Part Number: 1244-013852
Load bearing hanger for wide funnels. Designed for easy and quick fixation of heating cable types GM-2X, GM-2XT and FroStop Black.
Documents & Guides
Product Specifications
| Material | Stainless spring steel EN 1.4310 |
|---|---|
| Height | 225mm |
| Gutter type | Wide funnel with max edge/corner width of 20mm |
| Suitable cables | GM-2X, GM-2XT and Frostop Black |
| Box content | 5 hangers/box |
| Compatibility | Ensure compatibility with the materials to avoid galvanic corrosion |
GM-Rake
Raychem Part Number: 912791-000
The Raychem GM-RAKE Hanger Bracket is used with Raychem IceStop heating cables. It provides mechanical protection of the cable as it goes over sharp edges and holds it in place at the top of drainpipe.
- Fixing bracket/edge protection for drainpipes
- Spacer for use in wide channels or gutters where more than one run of cable is required (a spacer is placed every 100 cm)
- VA steel with UV-resistant cable ties KBL-09
GM-Seal-02
Raychem Part Number: 1244-012310
Adhesive for sticking and sealing common construction materials with a base of polyurethane perfectly suitable for metal or plastic gutters, roofing tiles and even asphalt and bitumen surfaces.
Comes in a 300ml pack.
IceStop-GMK-RC
Raychem Part Number: 153651-000
Roof clip to secure heating cables to roofs and gutters.
Adhesive can be applied on the underside of the roof clip. After curing of the adhesive the heating cable can be clipped between the clamps.
Comes as a pack of 50 pieces.
