Raychem Specialist Tooling
CDE-IR-TEMP
Raychem Part Number: 1244-002282
The CDE-IR-Temp is a non-contact infrared thermometer.
Simply aim at the target and press the ‘SCAN’ button to display the surface temperature.
Product Specifications
| Measurement Range | -33°C to +220°C (-27.4 to +428°F) |
|---|---|
| Operating Range | -10°C to +50°C (14 to +122°F) |
| Resolution (-9.9~199.9°C) | 0.1°C or °F (switchable), otherwise 1°C/1°F |
| Response Time | 1 second |
| Accuracy (Tobj=15~35°C, Tamb=25°C) | ±0.6°C (1.1°F) |
| Accuracy (Tamb=23±3°C) | ±2% of reading or 2°C (4°F) whichever is greater |
| Power Supply | CR2032 x 1pcs |
| Display | LCD |
| Dimensions | 18 x 37 x 68mm |
| Weight | 32 grams (inc. battery) |
STRIPPING-TOOL-SR-CABLE
Raychem Part Number: P000001126
The STRIPPING-TOOL-SR-CABLE is designed for use with Raychem BTV-CR, BTV-CT, QTVR-CT, XTV-CT, KTV-CT, HWAT, XL-Trace, IceStop and RaySol self-regulating heat tracing cables. The tool is designed for faster, safer and more reliable cable terminations.
The tool has two sets of blades designed for precise scoring of the outer and inner jackets of the cables mentioned above. The scoring blades are protected by a spring-loaded cap that rotates automatically. For safety, the cap rotates back to its original position automatically after the cutting operation is performed.
The tool also includes a unique core scoring feature that prevents damage to the conductors. The tool has a robust metallic body, ergonomic contour and replaceable blades

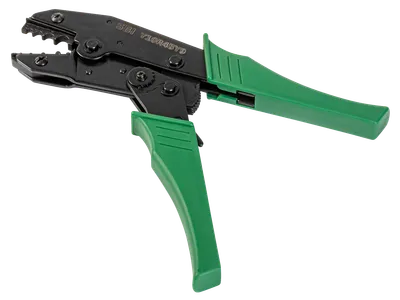

VIA-CTL-01
Raychem Part Number: 805965-000
Crimping tool for terminals in VIA-CE1 connection and end seal kits.
