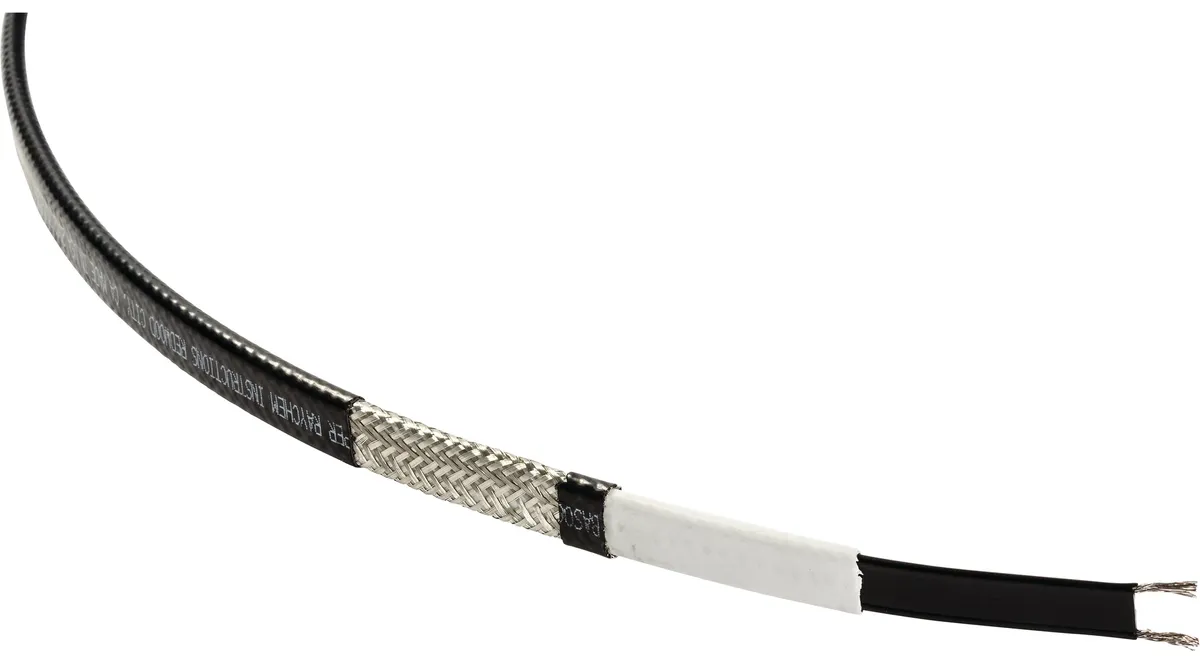

Raychem GM-2X Self Regulating Cable
Raychem Part Number: 446105-000
Self-regulating heating cables for roof & gutter snow melting and de-icing.
Raychem GM-2X heating cables provide roof and gutter snow melting and de-icing for following applications:
- Roofs comprising standard roofing materials, including slate, shingle, tar, wood, metal, and plastic.
- Gutters of standard materials including metal and plastic
- Drainpipes of standard materials, including metal and plastic.
The heating element of a GM-2X consists of a continuous core conductive polymer extruded between two copper conductors. As current flows through the core, the heating cable regulates its heat output in accordance with ambient conditions. The self-regulating feature eliminates hot spots and results in better temperature control to protect roof and gutter materials.
The GM-2X heating cable is ideal for more economical and less demanding applications. If the roofing material is bitumen, GM-2XT should be used to ensure maximum abrasion, chemical and mechanical resistance.
Product Specifications
| Power output (nominal) | 36 W/m @ 0°C in ice water |
|---|---|
| Supply voltage | 230 VAC |
| Max circuit length | 80m (20 A) |
| Minimum installation temperature | -18°C |
| Max exposure temperature | 65°C cont. power on (85°C intermittent) |
| Outer Jacket | Modified polyolefin |
| Min bending radius | 16mm |
