Raychem Elexant 650c Modbus Control Unit
Raychem Part Number: 1244-022835

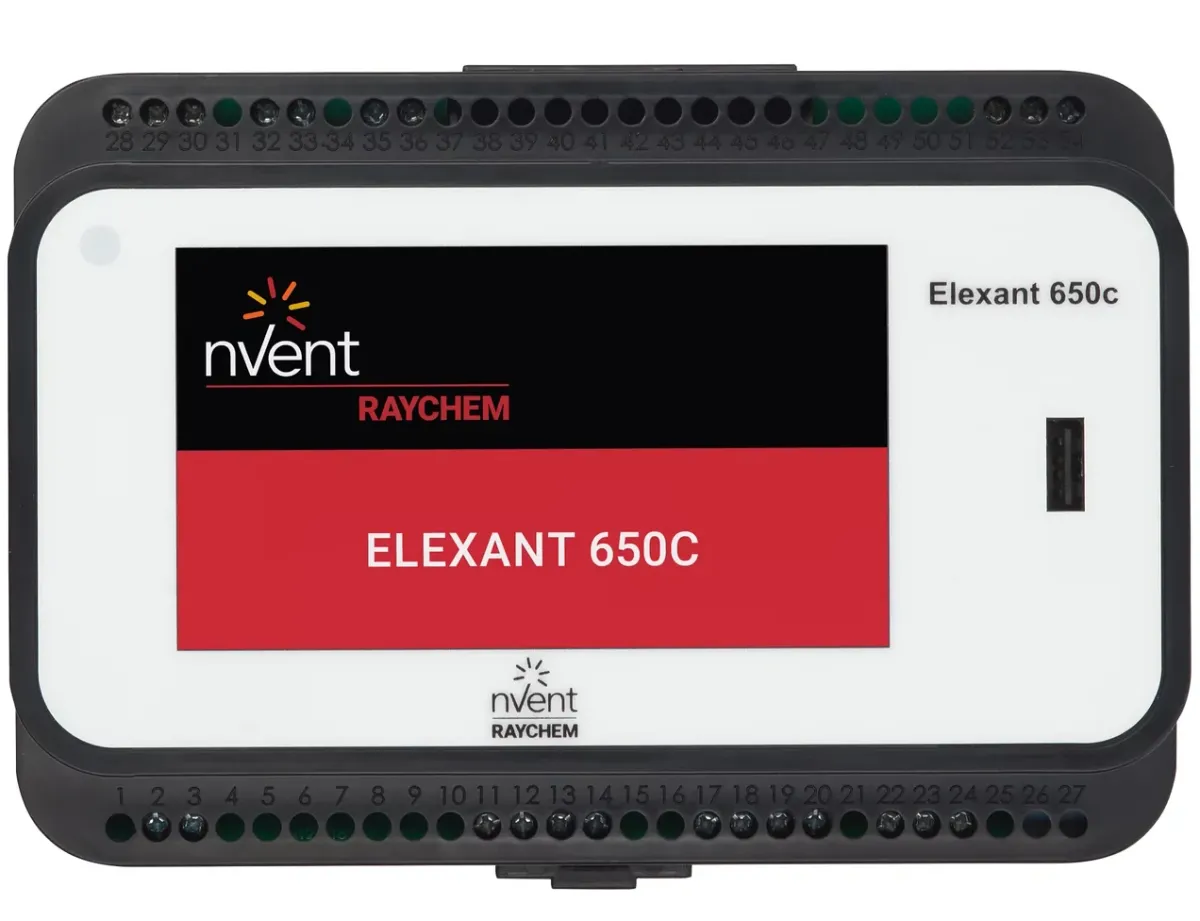

The nVent RAYCHEM Elexant 650c-Modbus controller is designed for operation with nVent RAYCHEM ramp, roof and gutter heating cables.
The Modbus connectivity allows for remote monitoring, configuration, and ease of integration in a Building Management System (BMS).
- Intuitive set-up and programming of the unit with a 4.3” colour touch screen
- Moisture and temperature control of roof & gutter de-icing and surface snow melting systems
- Controls 2 independent heating areas
- Temperature with moisture sensing for enhanced energy savings
- Alarm relay with change over contact to signal power, sensor or communication problems (Modbus)
- Ambient temperature monitoring with high and low temperature alarm
- Offsite configurable—can be set up prior to final installation
- DIN rail panel mountable
- The Elexant 650c-Modbus is equipped with a RS485 port for Modbus communication to a BMS system which can be used for configuration, monitoring and alarm purposes
- Ice rain feature—preheating the surface to prevent the issue of freezing rain (for surface snow melting application only)
Related Sensors
E650C-G
Raychem Part Number: 1244-022794
Ground sensor for combined measurement of temperature and moisture values in outdoor areas with foot or vehicle traffic. Robust version made of brass, fully encapsulated. Very low installation height, so particularly well suited to staircases, terraces, etc.
E650C-R
Raychem Part Number: 1244-022795
Rod-shaped sensor E650C-R for combined measurement of temperature and moisture values in gutters and neighbouring areas, such as flat roofs and downpipes to be used with Elexant 650c-Modbus. Robust version made of brass, fully encapsulated. Extremely compact design with axial cable outlet and threaded bolt for fixing in position. Optional mounting plate for sensor E650C-R can be used with sensor height adjustment above the mounting surface. The mounting plate can be matched to the mounting location by bending and then attached by gluing or soldering. Two material versions are available for suitable material combinations in gutter and flat roof applications.
SM-TF130-DI Plug-In Sensor Module
Raychem Part Number: 1244-022836

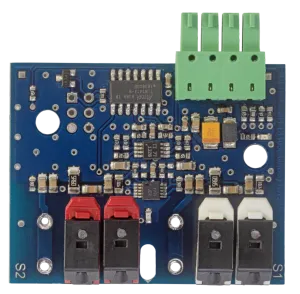

nVent Raychem SM-TF130-DI module is designed to operate only with Elexant 650c-Modbus controller. It provides additional digital and analog inputs to use for the panel alarm and ice rain feature.
Product Specifications
| Supply voltage | 230 VAC –15/+10%; 50/60 Hz |
|---|---|
| Power consumption | Max. 25 VA |
| Output relay / contactor / heating cable | 2 x 4 A / 230 VAC |
| Power supply terminals | 3 x 1.5 mm² |
| Heating cables contactor terminals | 2 x 2 x 1.5 mm² |
| Alarm terminals | 3 x 1.5 mm² |
| Sensor terminals | 2 x 2 x 1.5 mm² |
| Modbus terminals | 3 x 1.5 mm² |
| Alarm relay | Single pole double throw relay, voltage – free, rating 2 A/250 VAC |
| Real time clock | Automatic summer/winter time and leap year correction |
| Clock back up | 3 years |
| Clock accuracy | Typ. +/–10 minutes per year |
| Keylock | Password protection for parameter settings |
| USB Port | For preset-up in power off mode and firmware upgrade |
| Settings | All settings are stored in non-volatile memory, except date and time |
| Exposure temperature in operation | 0°C to +40°C |
