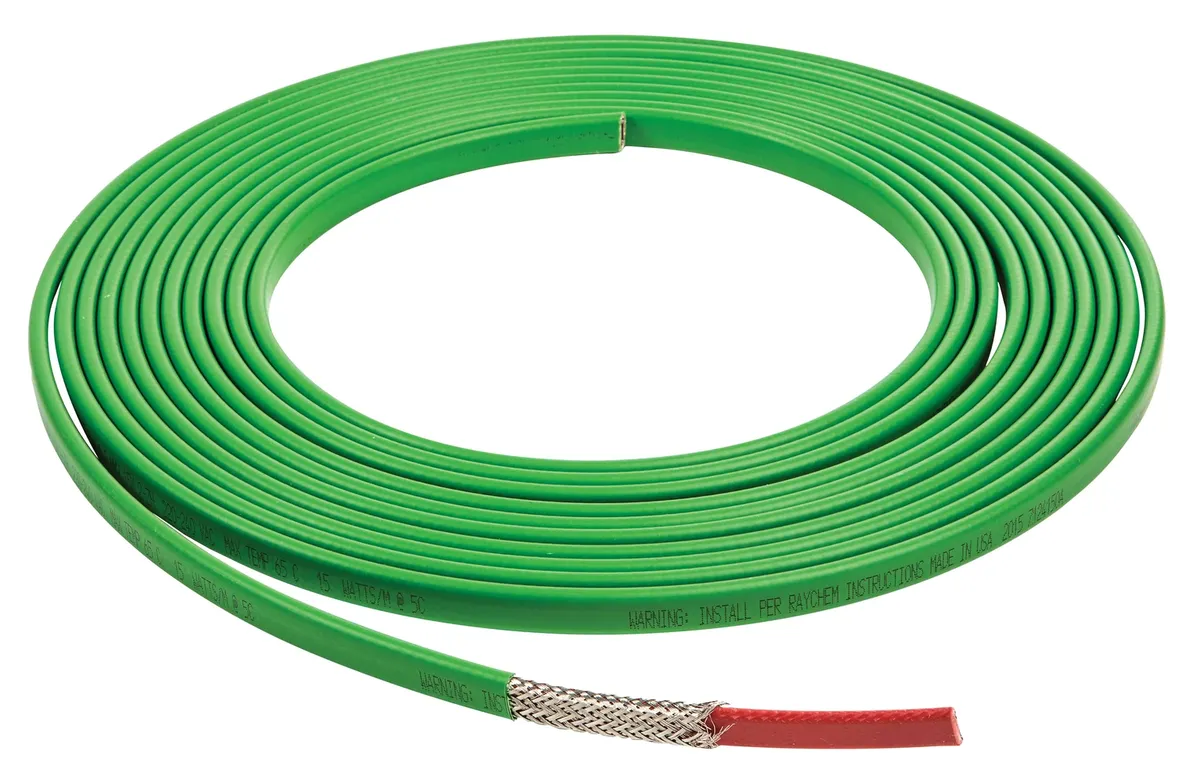

Raychem XL-Trace 15XL2-ZH Self Regulating Cable
Raychem Part Number: P000002114
Raychem XL-Trace 15XL2-ZH provides frost protection for pipes in areas exposed to sub-zero temperatures.
The self-regulating heating cable range, combined with pipe insulation, prevents water pipes, fire mains and sprinklers from freezing. Developed specifically for use within commercial and residential buildings, XL-Trace’s Low Smoke Zero Halogen materials ensure it is the safest solution for modern building design.
Connection of the cable is using the Raychem Rayclic system.
- Self-regulating—will not overheat where cable may need to cross-over itself
- Up to 90% less smoke emissions: IEC61034-2 tested and compliant
- Zero halogen: IEC60754-1 tested and compliant
- Improved self-extinguishing properties under the IEC62395 flammability test
- Easy to connect using the Rayclic system
The cables are warranted under the Raychem Extended Warranty Program providing 10 years warranty for registered installations. Additional warranties apply when installed by a Raychem Certified Pro.
Approvals
- IEC62395: 2013—CE, VDE, GOST-R, CSTB
- IEC60754-1—Zero Halogen Insulation Material
- IEC61034-2—Low Smoke Emissions
- IEC60068-2-5 and IEC60068-2-9—UV-Resistance
Product Specifications
| Nominal power output | 15W/m at 5°C |
|---|---|
| Maximum exposure temperature | 65°C |
| Maximum circuit length | 160m (20A) |
Construction
- 1.3mm² nickel plated copper conductor
- Self-regulating conductive core
- Low Smoke Zero Halogen (LSZH) Insulation
- Protective tinned copper braid
- Low Smoke Zero Halogen (LSZH) outer jacket (green)
