Raychem WINTERGARD-CABLE Constant Wattage Cable Mat

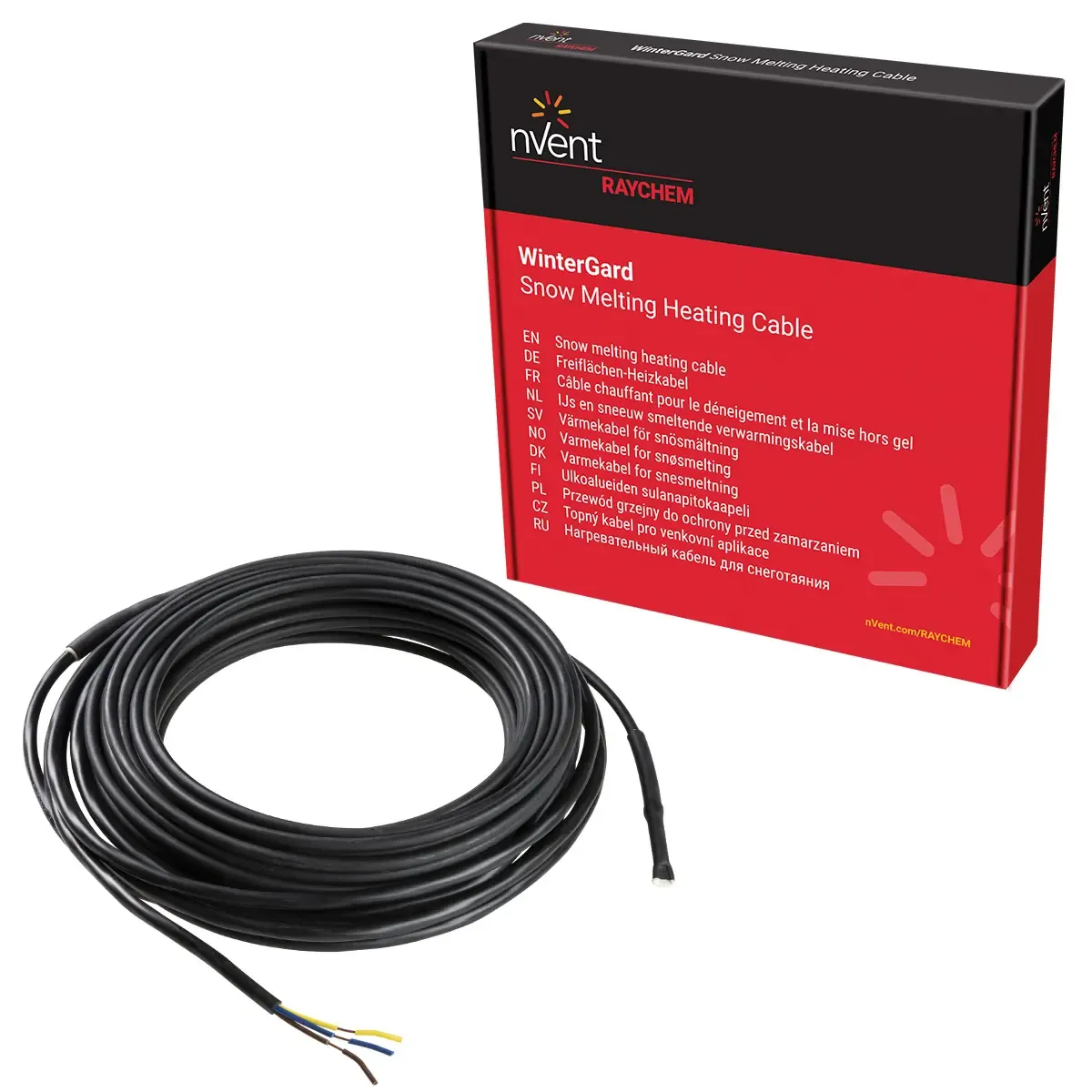

Raychem WINTERGARD-CABLE constant wattage cable mat rolled up and attached to a power lead, coloured blue, next to the box packaging it comes in.

The nVent RAYCHEM WINTERGARD-CABLE is a constant output heating cable for simple, fast and effective ramp and accessway heating to prevent snow and ice formation. The pre-terminated WINTERGARD-CABLE comes complete with a 5 metre cold lead, removing the need for on-site termination activities. Simply install the heater over the required area and connect the cold lead to the power junction box and control unit. The WINTERGARD-CABLE is particularly suited to track heating of ramps, loading bays, and driveways, but also emergency escape routes and pedestrian walkways. The WINTERGARD-CABLE is designed for applications for 230 VAC or where a 3 phase (400 V) supply is available.

Product Specifications

Nominal Power Output 30W/m
Voltage 230 Vac or 400 Vac
Maximum Exposure Temperature (powered) 65°C
Circuit Breaker required Type C RCD: 30mA
Certification CE, UKCA, EAC
Available Products
Product CodeDescriptionNominal VoltageLength (Metres)
1244-022768 WINTERGARD-CABLE-230V-10M230 V10
1244-022769 WINTERGARD-CABLE-230V-20M230 V20
1244-022770 WINTERGARD-CABLE-230V-29M230 V29
1244-022771 WINTERGARD-CABLE-230V-38M230 V38
1244-022772 WINTERGARD-CABLE-230V-47M230 V47
1244-022773 WINTERGARD-CABLE-230V-57M230 V57
1244-022774 WINTERGARD-CABLE-230V-67M230 V67
1244-022775 WINTERGARD-CABLE-230V-75M230 V75
1244-022776 WINTERGARD-CABLE-230V-84M230 V84
1244-022777 WINTERGARD-CABLE-230V-94M230 V94
1244-022778 WINTERGARD-CABLE-230V-112M230 V112
1244-022779 WINTERGARD-CABLE-230V-134M230 V134
1244-022780 WINTERGARD-CABLE-230V-150M230 V150
1244-022781 WINTERGARD-CABLE-230V-168M230 V168
1244-022761 WINTERGARD-CABLE-400V-26M400 V26
1244-022762 WINTERGARD-CABLE-400V-35M400 V35
1244-022763 WINTERGARD-CABLE-400V-62M400 V62
1244-022764 WINTERGARD-CABLE-400V-121M400 V121
1244-022765 WINTERGARD-CABLE-400V-172M400 V172
1244-022766 WINTERGARD-CABLE-400V-210M400 V210
1244-022767 WINTERGARD-CABLE-400V-250M400 V250
