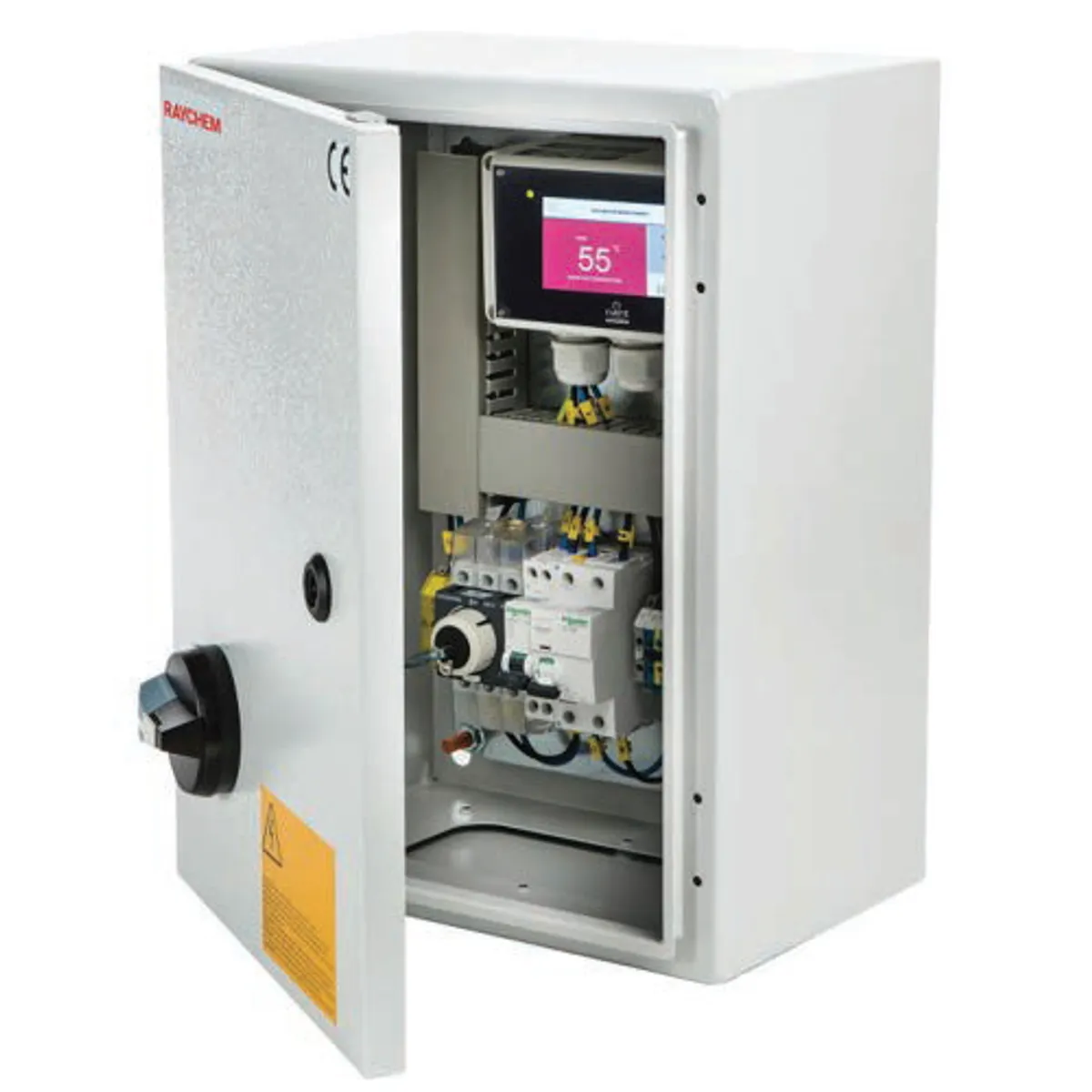

SBS-R-HWAT Control Panel
The Raychem SBS-R-HWAT control panel for hot water temperature maintenance systems provides an integrated solution for the control of Raychem self-regulating heating cables for single pipe hot water temperature maintenance applications.
The control panel comprises the energy efficient HWAT-ECO control system with standard, economy, and “Tap time” set-back functions. The control panel also includes monitoring of the boiler output temperature and low temperature alarm in the event of low boiler output temperature. A BMS connection is also provided to allow controller override switching between maintain mode, setback mode, or legionella prevention mode (when using HWAT-R heating cable only).
The SBS-R-HWAT panels are available in 1, 3 and 6 circuit switching versions. The panel also includes electrical circuit protection devices (C-type circuit breakers and RCD protection) for safety, peace of mind and electrical regulation compliance.
Product Specifications
| Control | nVent RAYCHEM HWAT-ECO controller |
|---|---|
| Panel Colour | Light Grey |
| Protection Class | IP65 |
| Installation Location | Indoor |
| Ambient Temperatures | +10°C to +35°C |
| Cable Apertures | Metal panel with metric apertures to cut out |
| Power Supply | 230Vac, 50Hz or 400V/230Vac, 50Hz, 3L/N/PE (depending on panel selected) |
| Panel Material | Metal Enclosure |
| Panel Approval | CE (Approved to IEC 61439-1) |
| Main Switch | 40A |
| RCD | 30mA |
| Line Circuit Breakers | 13, 16, 20A (Type C) per heating circuit |
| Approvals | CE marked, UKCA marked |
| Product Code | Description | Raychem Part Number |
|---|---|---|
| SBS-R-HWAT-1x20A | 1 circuit control panel for HWAT Cables (1 x 20A circuit) | 1244-016639 |
| SBS-R-HWAT-3x20A | 3 circuit control panel for HWAT Cables (3 x 20A circuit) | 1244-016640 |
| SBS-R-HWAT-1X13A | 1 circuit control panel for HWAT Cables (1 x 13A circuit) | 1244-021423 |
| SBS-R-HWAT-1X16A | 1 circuit control panel for HWAT Cables (1 x 16A circuit) | 1244-021424 |
| SBS-R-HWAT-6X16A | 6 circuit control panel for HWAT Cables (6 x 16A circuit) | 1244-021426 |
| SBS-R-HWAT-3X16A | 3 circuit control panel for HWAT Cables (3 x 16A circuit) | 1244-021425 |
