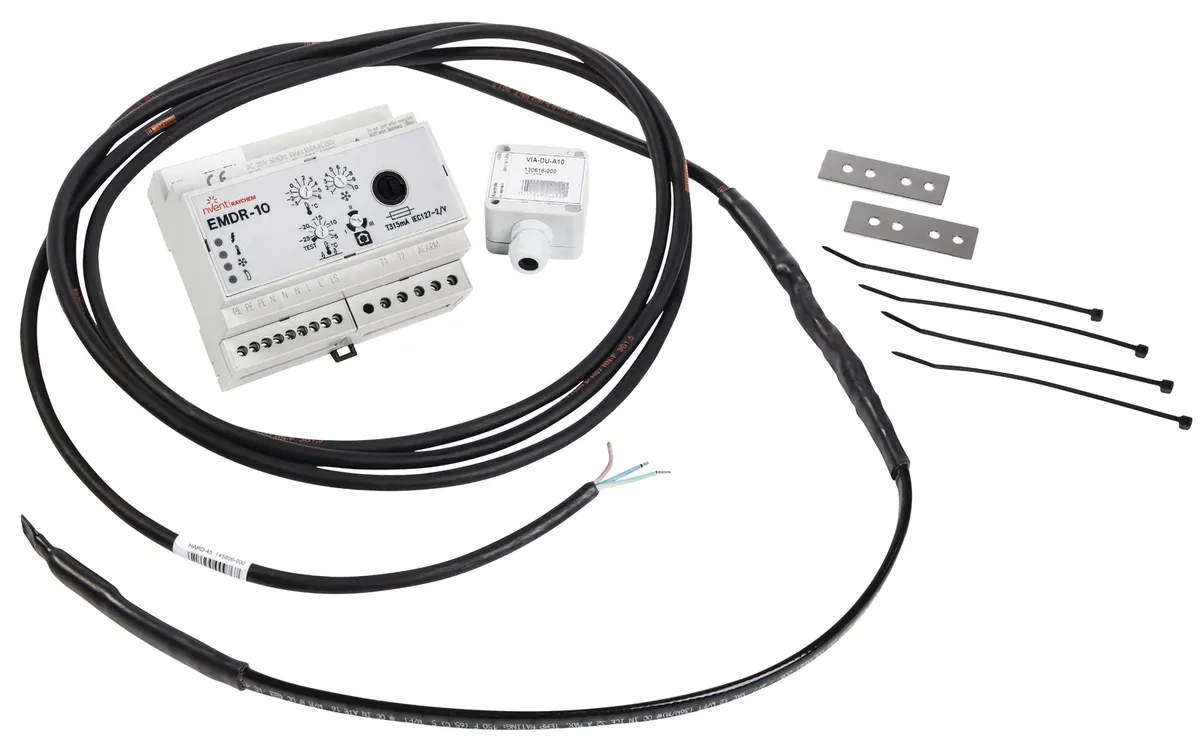

Raychem EMDR-10 Snow Melting Thermostat for Gutters, Roofs & Downpipes
Raychem Part Number: 449554-000
This product is being phased out by the manufacturer. Only limited stocks are available.
The EMDR-10 is used to ensure an energy efficient operation of the gutter snow melting sytem Icestop GM-2X and Icestop GM-2XT.
Equipped with a temperature and moisture sensor, the thermostat only activates the system when detecting moisture and temperatures below zero, to ensure effective drainage of snowy water.
Benefits
- Compatible with GM-2X and GM-2XT cables
- Dual sensor only activates when necessary : cold & wet
- Savings up to 80% possible
Safe
- Alarm relay contact for sensor break, sensor short circuit and power failure.
Product Specifications
| Nominal voltage | Supply voltage 230 VAC ±10% 50Hz |
|---|---|
| Max. switching capacity | max 10 A / 230 VAC SPST potential 230 VAC |
| Temperature adjustment range | -3°C to +6°C (factory setting +2°C) |
| Lower limit temperature test | -25°C to -5°C |
| Moisture adjustment range | 1 (max. sensitivity) to 10 (min. sensitivity) |
| Mounting | DIN rail according to DIN EN 50022-35 |
| Post heating time | 0 to 60 minutes |
| Approvals / Certifications | VDE; Semko |
| Ambient temperature range | 0°C to +50°C |
| Ingress protection | IP20 |
