SBS-xx-CM-20 Control Panel
This product has been made obsolete by the manufacturer and is no longer available.
This has been kept for historical and informational purposes only.

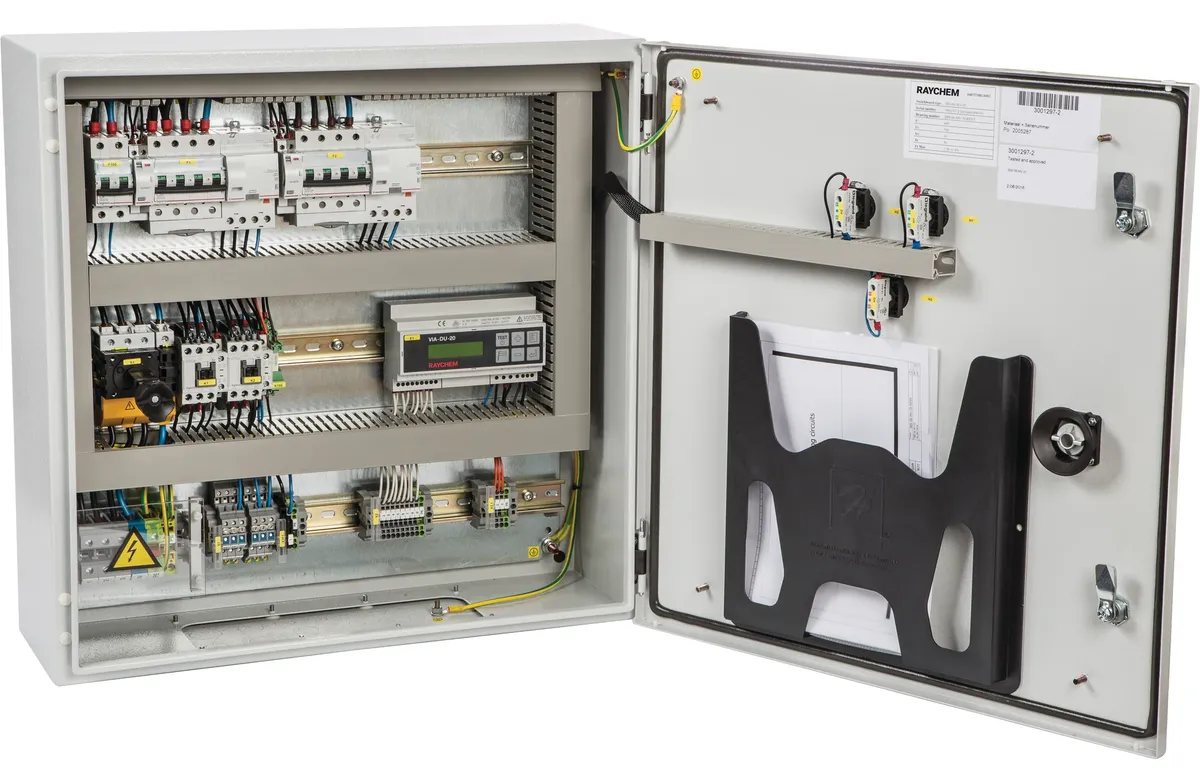

The SBS-XX-CM-20 control panel for ice and snow prevention systems provides a totally integrated electrical safety, connection and control solution for Raychem EM2-CM constant wattage heating mats for surface snow melting applications.
The control panel comprises the VIA-DU-20 multi-sensor control unit for energy efficient ground surface heating and integrated electrical safety devices.
The SBS-xx-CM-20 panels can switch up to 18 maximum circuits of EM2-CM mats. The panel also includes electrical circuit protection devices (C-type circuit breakers) and residual current devices for safety and peace of mind. The panels need only be connected to the 400Vac (3 phase) supply.
Benefits
- Energy Efficiency through multi-sensor (temperature and moisture) controller input
- All trace heating circuit protection built-in; no need for additional heater circuit protection devices.
- EN60204-1 and EN60439-1 compliant multi-circuit control panels
- Robust metal enclosure (RAL7035—light Grey) housing with IP54 rating.
Product Specifications
| Control type | Raychem VIA-DU-20 |
|---|---|
| Supply Voltage | 400 Vac/230 Vac 50/60Hz |
| Sensor Type | Ground temperature and integrated moisture sensor / Ambient temperature sensor (optional) |
| Approval | CE (Approved to IEC60204-1 and IEC60439-1) |
| Installation location | Indoors |
| Ingress Protection | IP54 |
| Product Code | No. of Circuits | Raychem Part Number |
|---|---|---|
| SBS-03-CM-20 | Up to 3 circuits | 1244-006430 |
| SBS-06-CM-20 | Up to 6 circuits | 1244-006431 |
| SBS-09-CM-20 | Up to 9 circuits | 1244-006432 |
| SBS-12-CM-20 | Up to 12 circuits | 1244-006433 |
| SBS-15-CM-20 | Up to 15 circuits | 1244-008212 |
| SBS-18-CM-20 | Up to 18 circuits | 1244-008213 |
