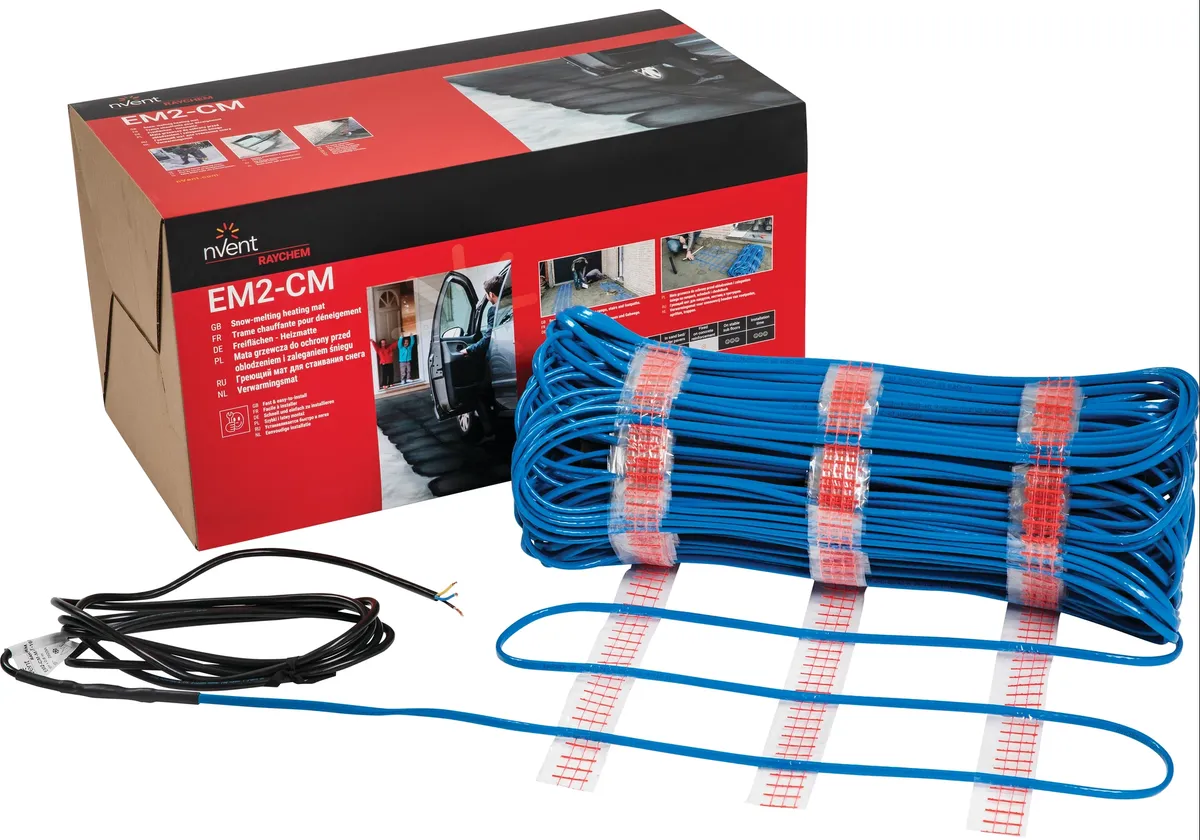

Raychem EM2-CM-MAT Constant Wattage Cable Mat
This product has been made obsolete by the manufacturer and is no longer available.
This has been kept for historical and informational purposes only.
EM2-CM is a constant wattage heating mat for simple, fast and effective ramp and accessway heating to prevent snow and ice formation.
The “Roll-out” mat configuration allows fast installation whilst ensuring the required power output is installed.
The pre-terminated EM2-CM mat comes complete with a 4 metre cold lead, removing the need for on-site terminations. Simply install the heater over the required area and connect the cold lead to the power junction box and control unit.
The EM2-CM mat is particularly suited to track heating of ramps, loading bays and driveways, but also emergency escape routes and pedestrian walkways.
Product Specifications
| Nominal Power Output | 300W/m² |
|---|---|
| Nominal Voltage | 230 Vac |
| Maximum Exposure Temperature (powered) | 65°C |
| Maximum Exposure Temperature | 65°C |
| Circuit Breaker required | Type C |
| Certification | CE, VDE |
| Product Code | Dimensions | Power Output (Watts) | Circuit Breaker (Amps) | Raychem Part Number |
|---|---|---|---|---|
| EM2-CM-MAT-2M | 2m x 0.6m (1.2m²) | 400 | 10 | 1244-004887 |
| EM2-CM-MAT-3M | 3m x 0.6m (1.8m²) | 520 | 10 | 1244-004888 |
| EM2-CM-MAT-4M | 4m x 0.6m (2.4m²) | 670 | 10 | 1244-004889 |
| EM2-CM-MAT-5M | 5m x 0.6m (3.0m²) | 930 | 10 | 1244-004890 |
| EM2-CM-MAT-7M | 7m x 0.6m (4.2m²) | 1140 | 10 | 1244-004891 |
| EM2-CM-MAT-10M | 10m x 0.6m (6.0m²) | 1860 | 10 | 1244-004892 |
| EM2-CM-MAT-13M | 13m x 0.6m (7.8m²) | 2560 | 16 | 1244-004893 |
| EM2-CM-MAT-16M | 16m x 0.6m (9.6m²) | 2890 | 16 | 1244-004894 |
| EM2-CM-MAT-21M | 21m x 0.6m (12.6m²) | 3730 | 20 | 1244-004895 |
